SCHULTZ® S760 is a high-temperature synthetic heat transfer fluid with a relative wide temperature range (-20–350°C). It has excellent anti-coking properties and can retain its properties under repeated cycles of cooling and heating. It is wildly used in the chemical industry and pharmaceutical manufacturing and is an ideal heat transfer fluid utilized by many companies.
SCHULTZ® S760 is a synthetic heat transfer fluid with a maximum service temperature at 350°C and with bibenzyl as the main ingredient. Boasting excellent anti-cokeability performance, it can provide long-term service in heating supply systems.
High Temperature Stability – The operating temperature of SCHULTZ® S760 in the liquid phase can reach as high as 350°C, boasting superior high-temperature stability. It is one of the most heat-resistant liquid-phase heat transfer fluid.
Favorable Low-Temperature Pumpability – With favorable low-temperature performance, SCHULTZ® S760 can easily start from cold at low temperatures and is more suitable for operation in cold regions.
Highly Cleanness – With lower thermal cracking, SCHULTZ® S760 will not generate high-boiling residues easily. The split products are mainly of low molecules. The unique high cleanness and cokeability-free properties enable it to maintain a clean heating system, effectively prolonging the service life of the machinery.
| Appearance | Colorless Transparent Liquid |
| Component | Diaryl Alkyl |
| Moisture Content / (mg/kg) | 40 |
| Flash Point / °C | 192 |
| Auto Ignition Temperature / °C | 390 |
| Pour point / ℃ | -30 |
| Density (20°C) (kg/m3) | 1026 |
| Total Acidity / KOH (mg/g) | 0.01 |
| Carbon Residue % | 0.01 |
| Distillation Range 2% / °C | 330 |
| Kinematic Viscosity (mm2 /s) 0°C | 227 |
| Kinematic Viscosity (mm2 /s) 40°C | 14.8 |
| Kinematic Viscosity (mm2 /s) 100°C | 2.8 |
| Average Molecular Weight | 236 |
| Coefficient of Thermal Expansion (300℃) / ℃ | 0.000952 |
| Heat of Combustion / (kJ/kg) | 40194 |
| Pseudocritical Temperature / ℃ | 575 |
| Pseudocritical Pressure / bar | 20 |
| Pseudocritical Density / (kg/m3) | 3.4 |

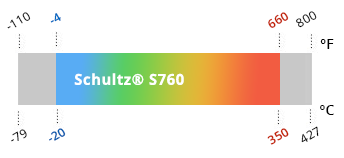

| Optimal Applicable Temperature Range / ℃ | -20－350 |
| Maximum Operation Temperature / ℃ | 350 |
| Maximum Liquid Film Temperature / ℃ | 380 |
Note: The above data are based upon test samples in laboratory, and not guaranteed for all products.
For full specifications of SCHULTZ® S760, please contact our sales dept.
